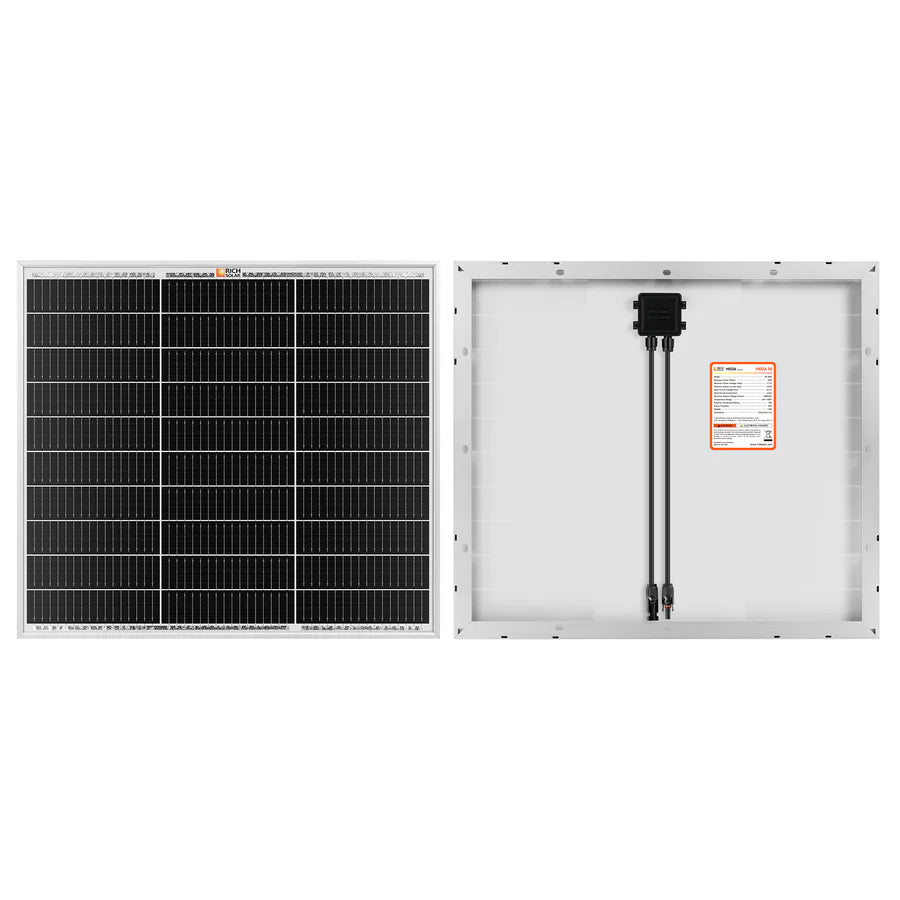

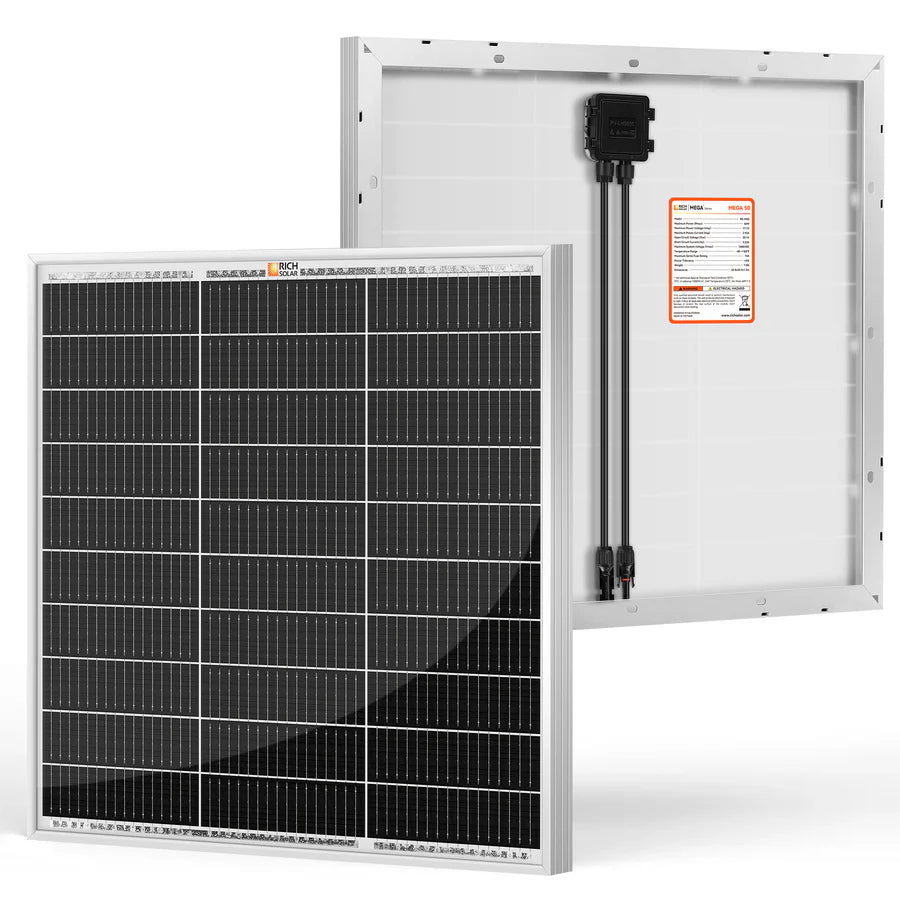

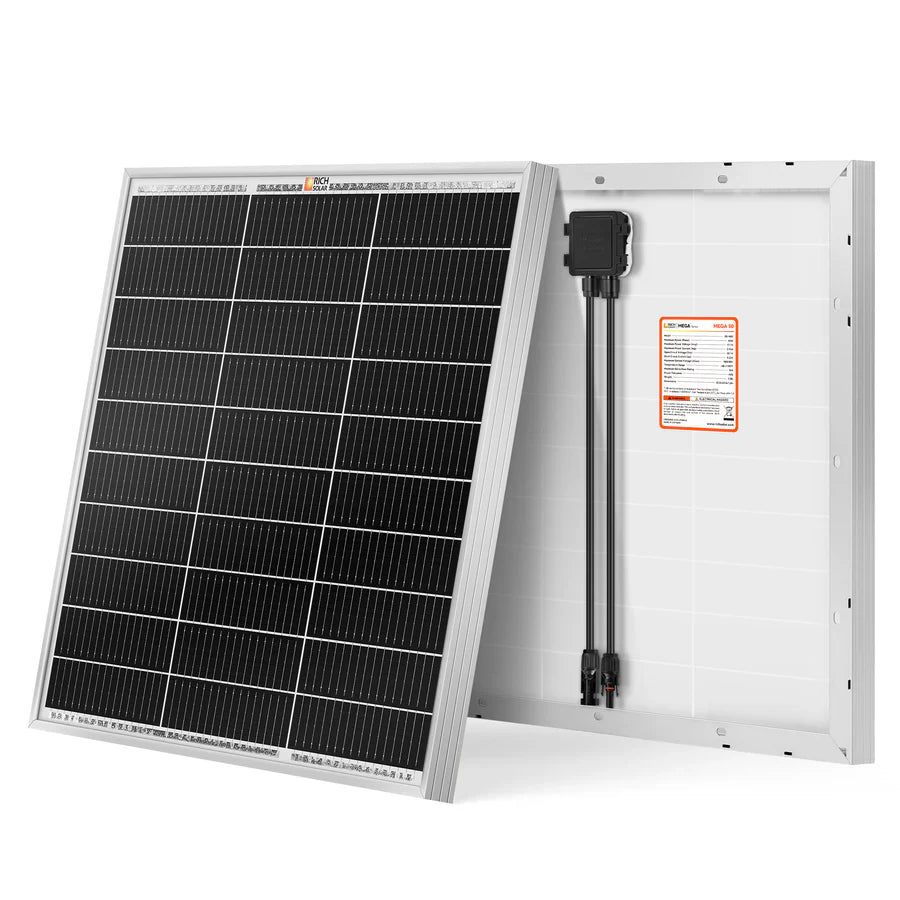

MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty | UL Certified

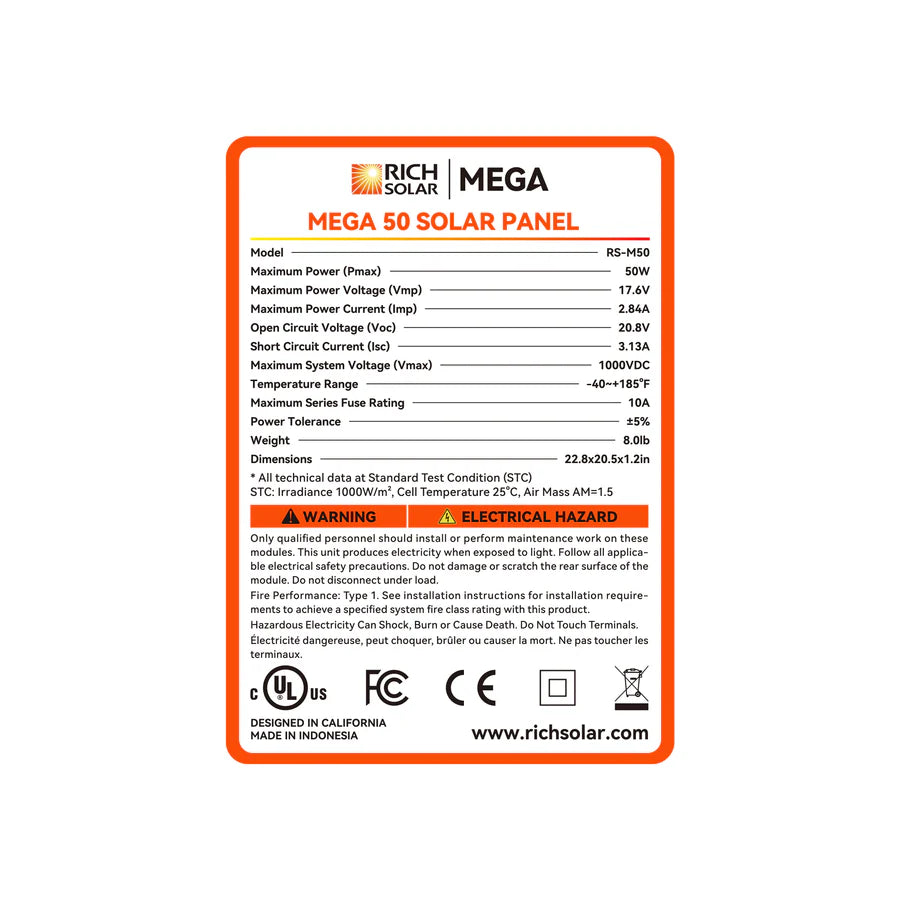

Specifications & Downloads

• On Panel Cable Length
  ≈ 35 in
• Material
  Tempered Glass, Aluminum, Monocrystalline Silicon
• Dimensions
  22.8x20.5x1.2in
• Weight
  7.5 lb
• Maximum Power(Pmax)
  50W
• Maximum Power Voltage(Vmp)
  17.1V
• Maximum Power Current(Imp)
  2.92A
• Open Circuit Voltage(Voc)
  20.1V
• Short Circuit Current(Isc)
  3.22A
• Maximum System Voltage(Vmax)
  1000VDC

• Maximum Power(Pmax): 50W
• Maximum Power Voltage(Vmp): 17.1V
• Maximum Power Current(Imp): 2.92A
• Open Circuit Voltage(Voc): 20.1V
• Short Circuit Current(Isc): 3.22A
• Maximum System Voltage(Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Weight: 7.5 lb
• Dimensions: 22.8x20.5x1.2in

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP67 rated.

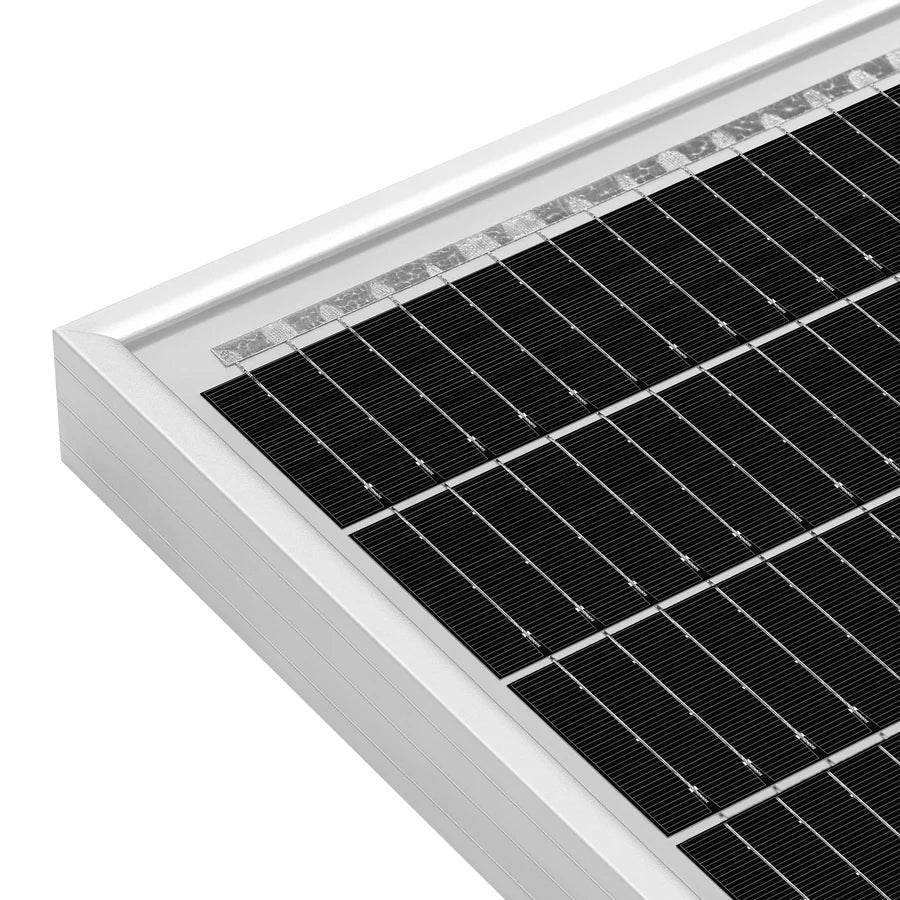

• Built with strong tempered glass and an aluminum frame.
• Certified to withstand challenging environmental conditions.


Installation

• Easy installation and handling for various applications.

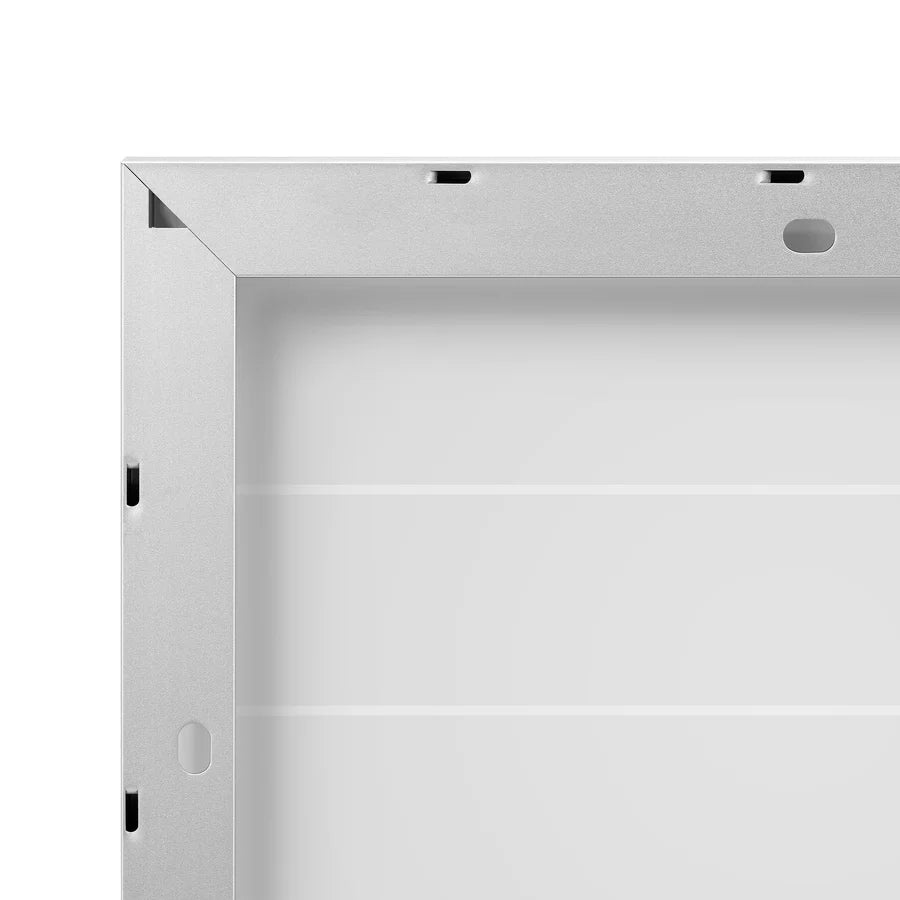

• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Built-in Components

• Panel Leads (Pair): 12AWG 2FT

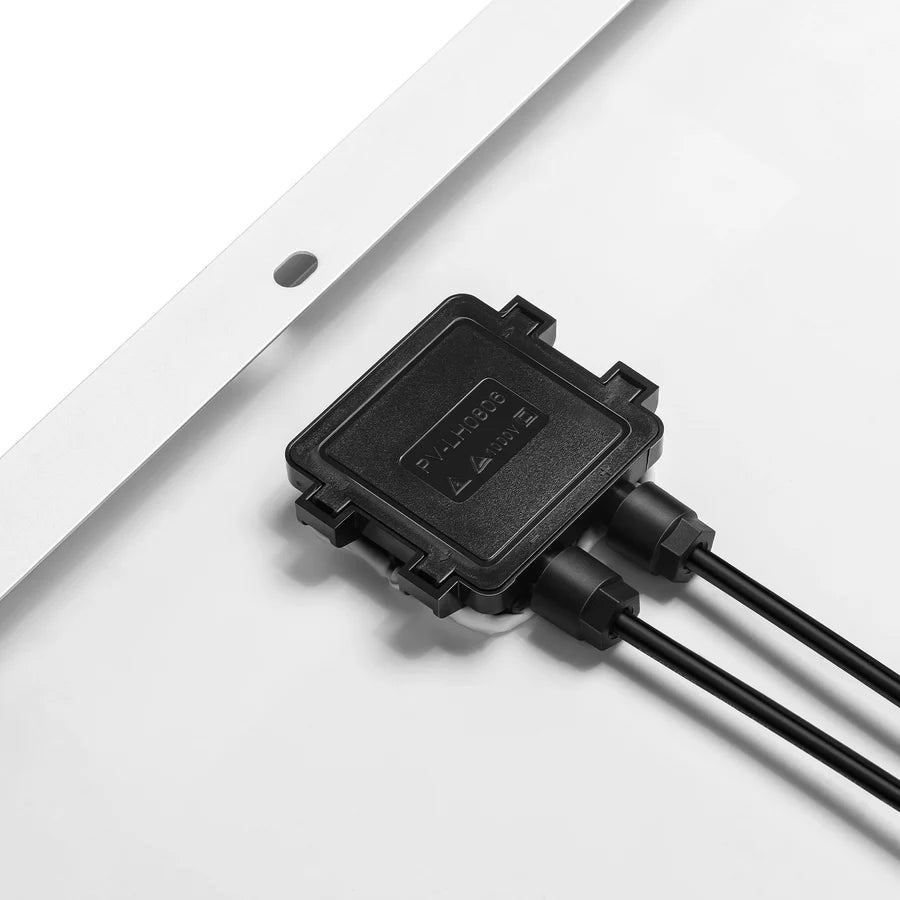

• IP67-rated waterproof junction box

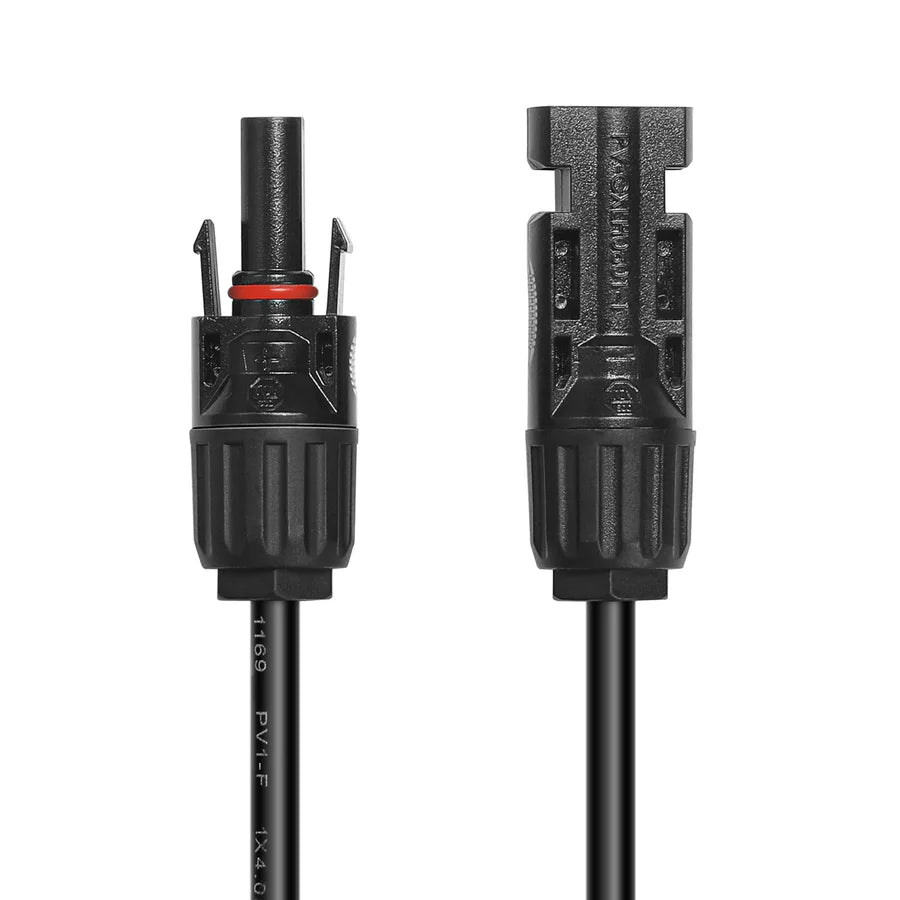

• IP67-rated waterproof solar connectors

Warranty

Check out our full Warranty page here for more information.
