Rich Solar

200 Watt Solar Kit

$399.99

Sale Sold out

Shipping calculated at checkout.

Option Standard Kit Standard kit without controller & fuse

Quantity

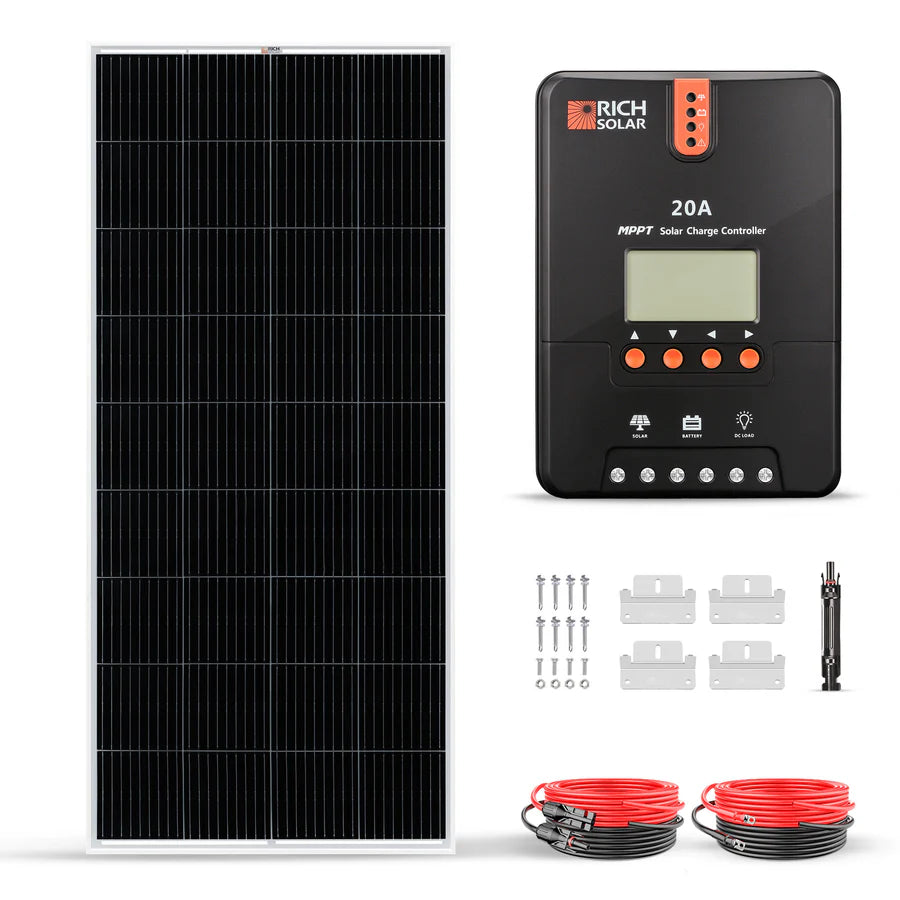

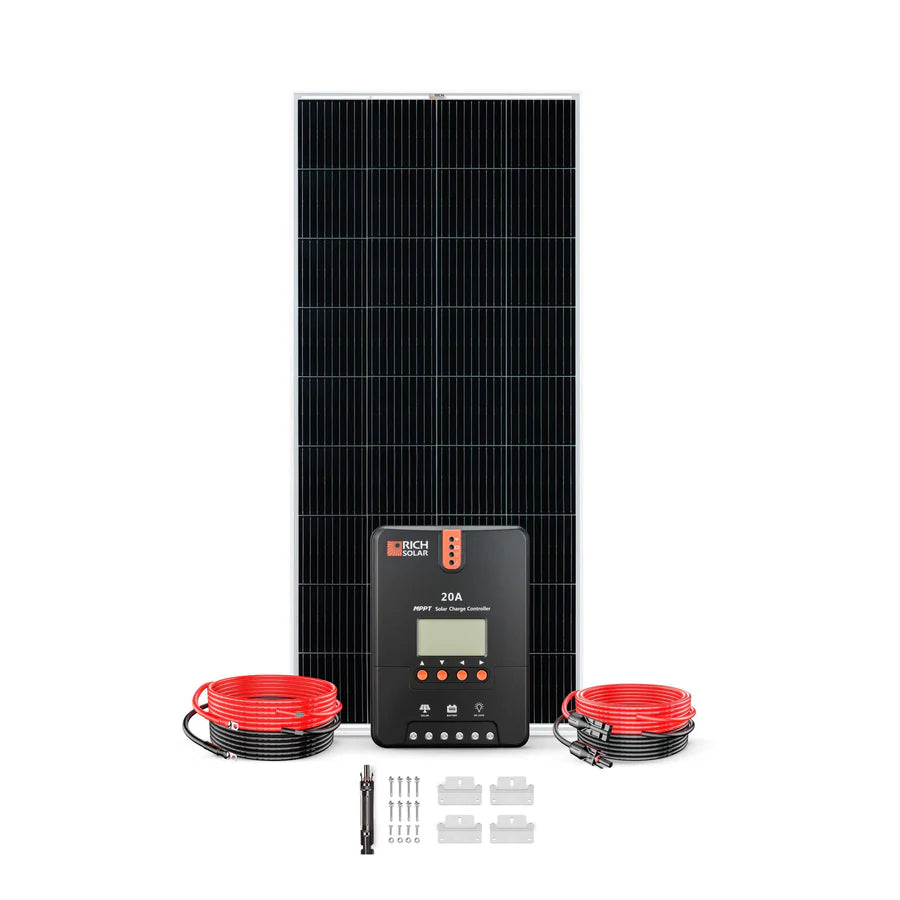

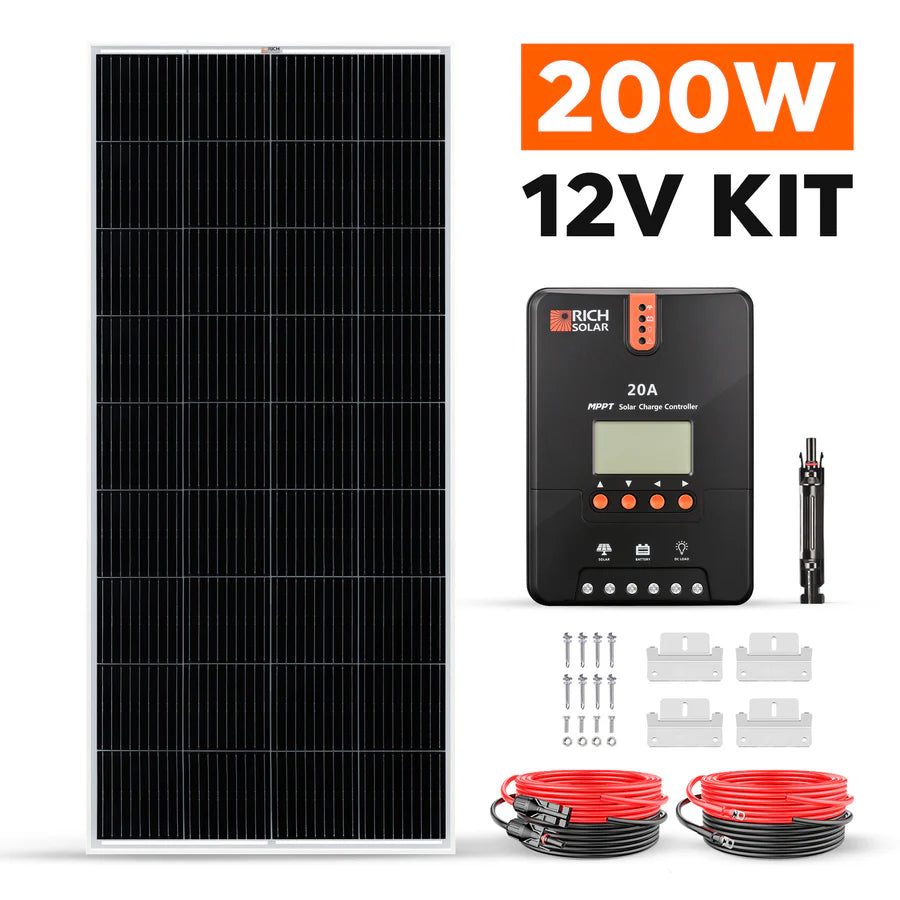

Our 200W kit includes a high-efficiency 200W Monocrystalline panel with 9 busbars and a 20A MPPT controller. One of the best 200W solar panel kits in the market, this can be paired with our 100AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your travel trailer solar system!

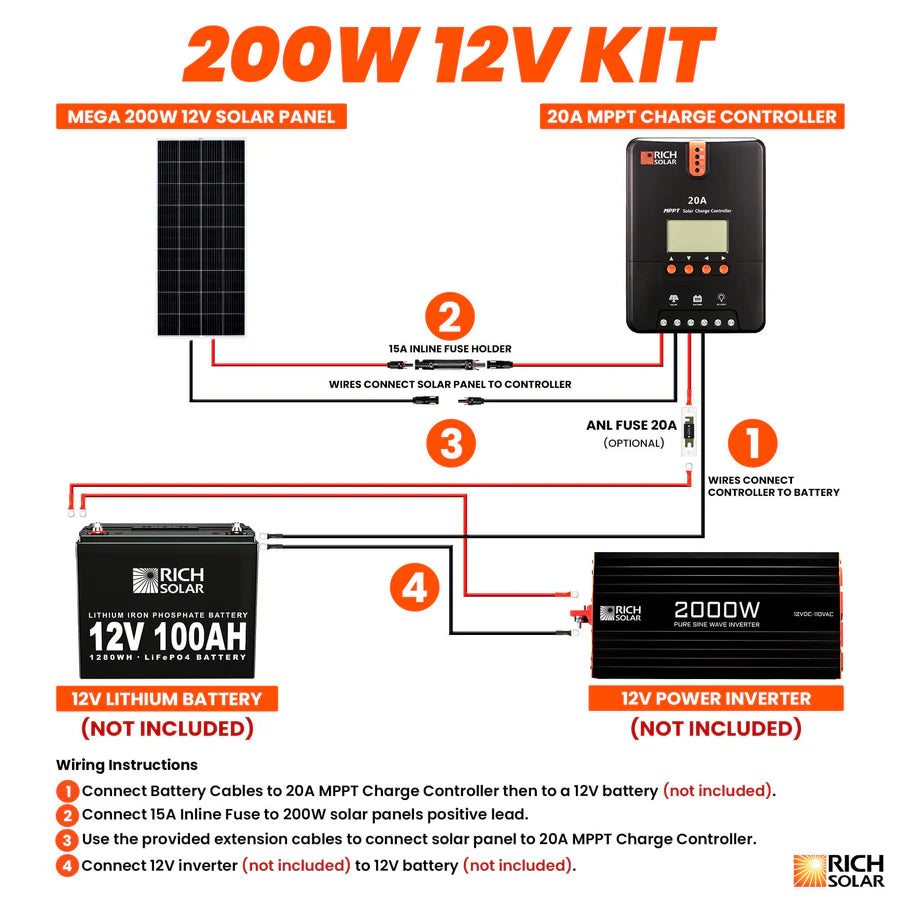

Kit Includes:

1 x 200 Watt Monocrystalline Solar Panel(RS-M200)
1 x 20A MPPT Solar Charge Controller(RS-MPPT20)
1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10' #10 Gauge Battery Cable (Red), connects the controller to the battery(RS-1010)
1 x 10' #10 Gauge Battery Cable (Black), connects the controller to the battery(RS-1010)
1 x Mounting Z Brackets (one set)(RS-ZB4C)
1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)

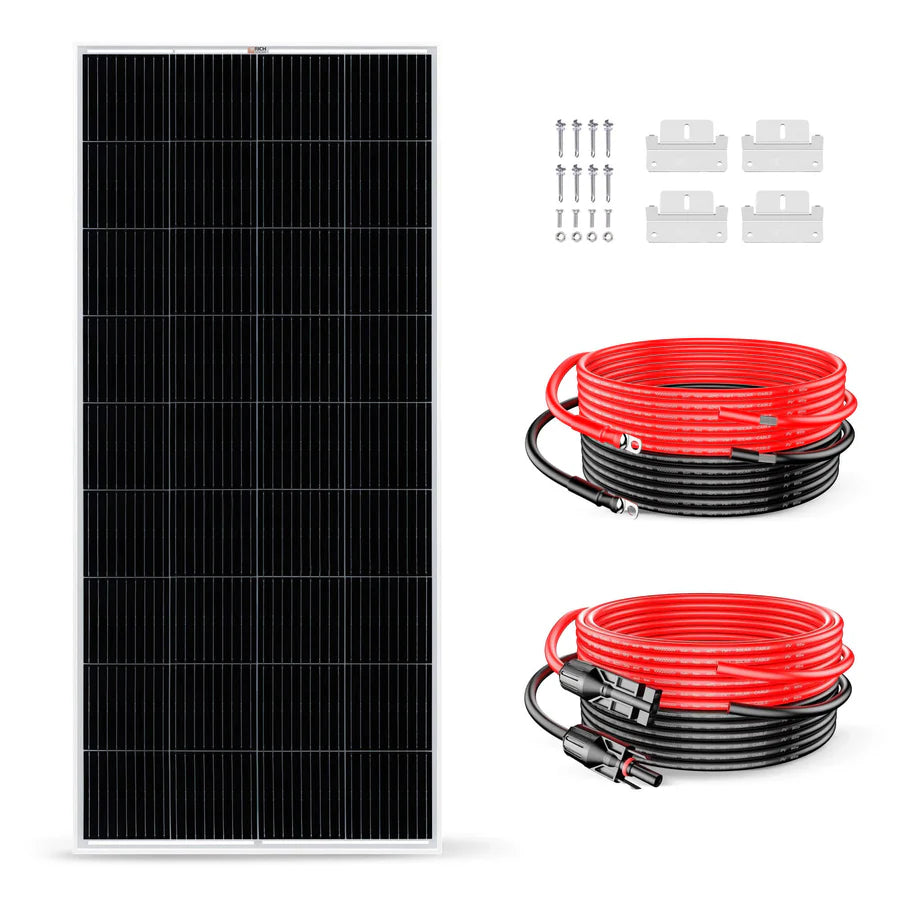

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Nominal Operating Cell Temp (NOCT): 113 +/-35° F
Temperature Range: -40 ~ +185°F
Weight: 23.6 lbs
Dimensions: 58.7 x 26.8 x 1.2 in

20 Amp MPPT Solar Charge Controller

Features:

Automatically detects 12V or 24V DC system voltages
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
Features diverse load control; also capable of charging over-discharged lithium batteries
Die-cast aluminum design allows for efficient heat dissipation
RS232 port to communicate with BT-1 Bluetooth module
