Rich Solar
600 Watt Solar Kit
600 Watt Solar Kit
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

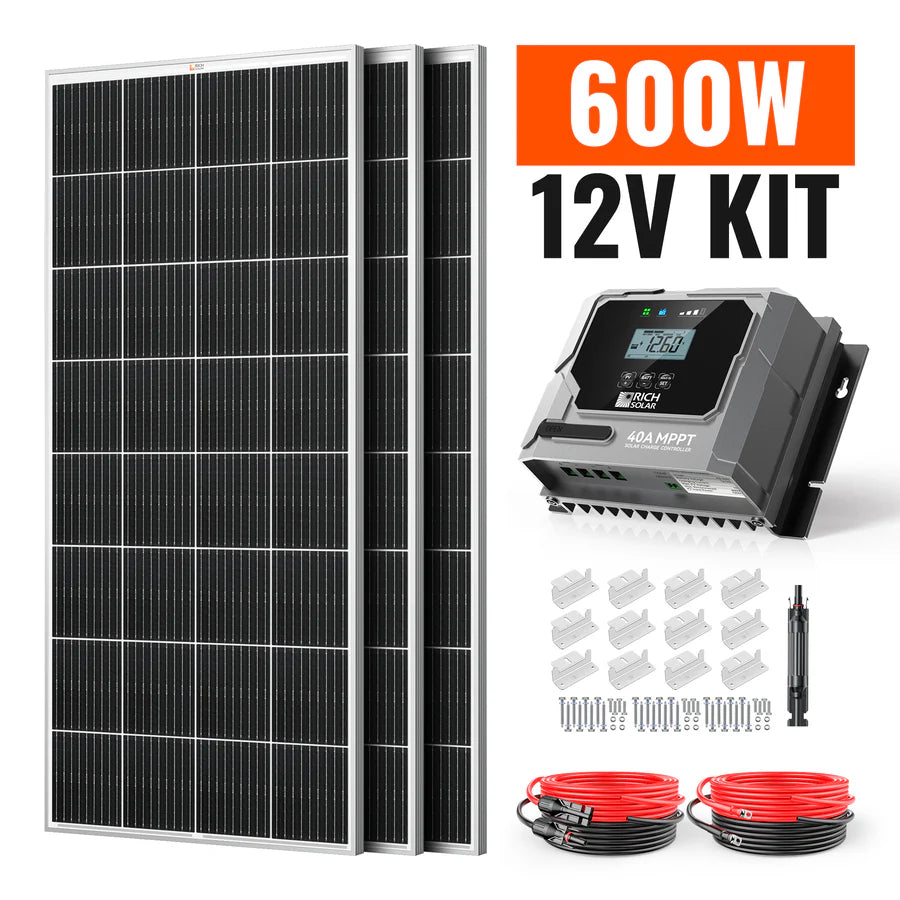

Our 600W kit contains 3 of our high-efficiency 200W Monocrystalline panels with 9 busbars and our 40A MPPT controller. This kit can be paired with 3 of our 100AH 12V Lithium batteries wired in parallel for your trailer solar system. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

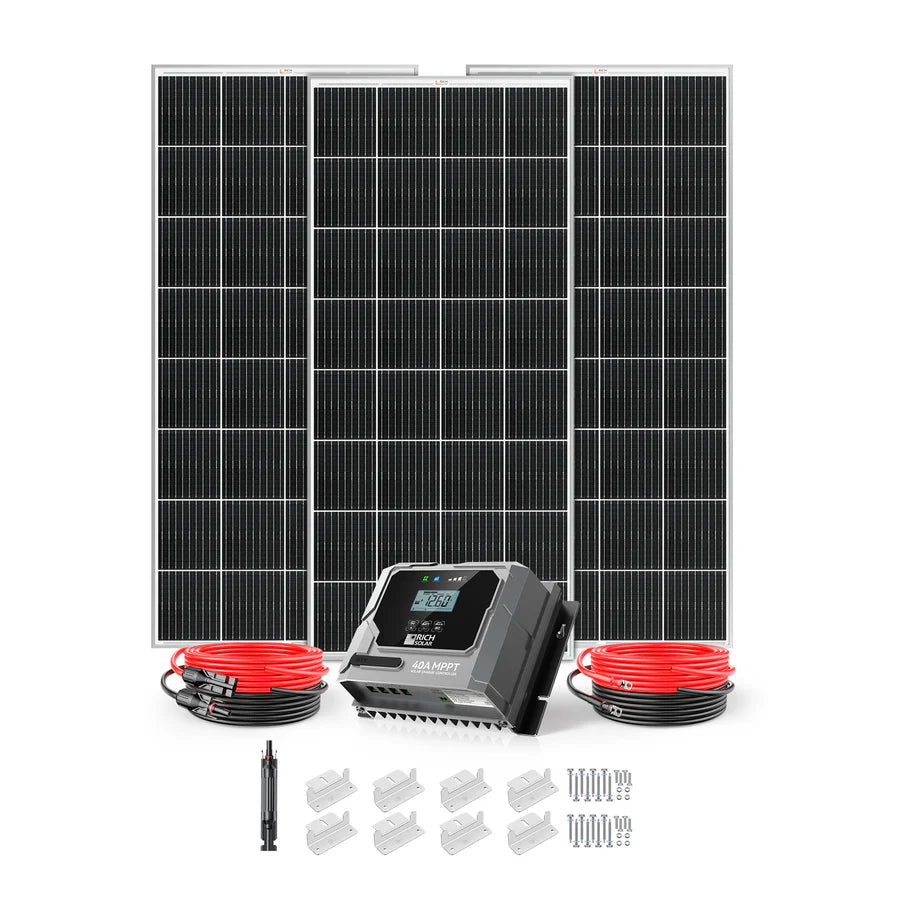

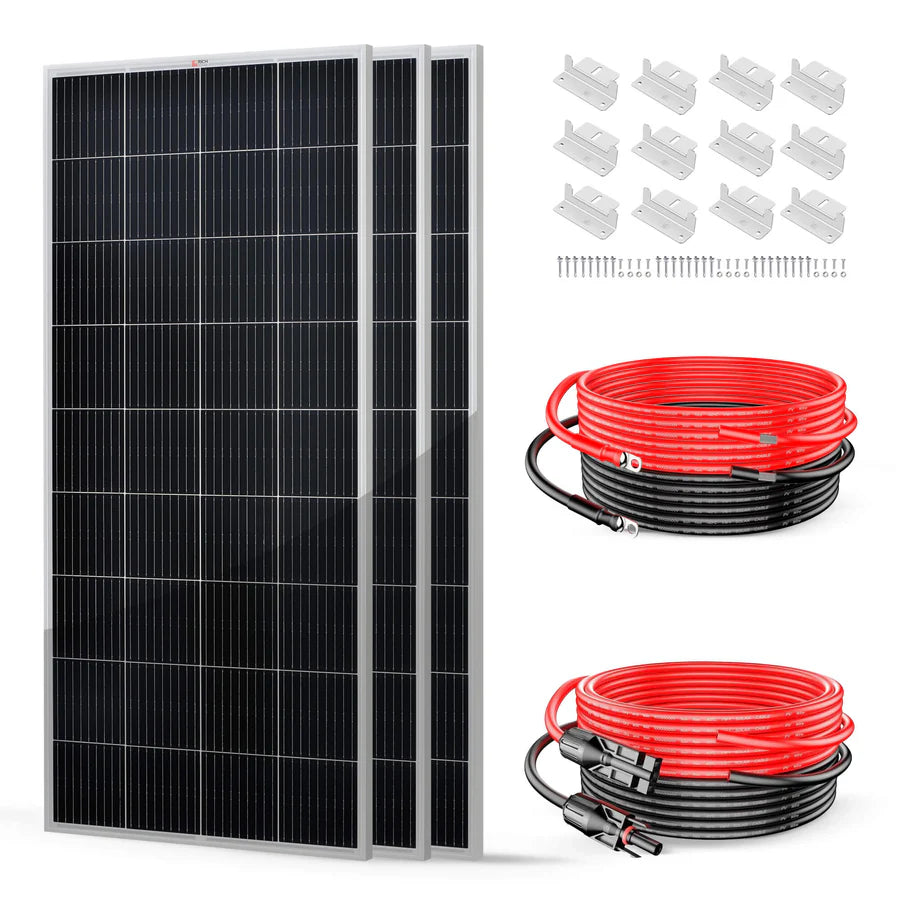

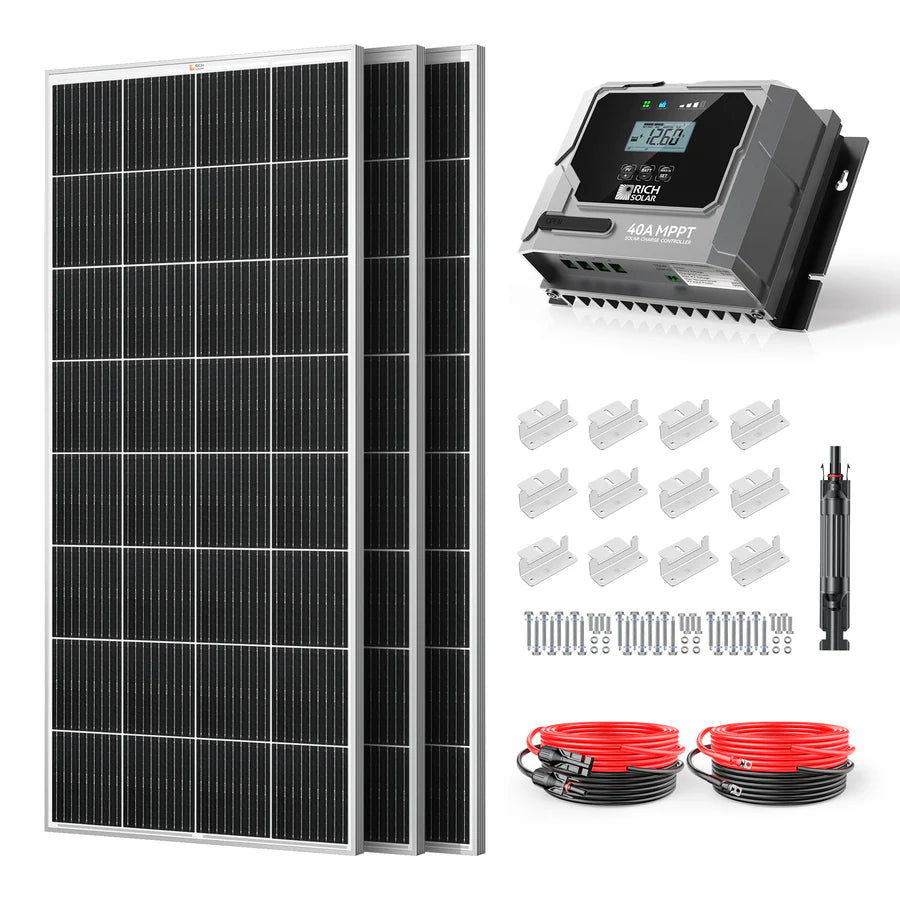

Kit Includes:
- 3 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery(RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery(RS-810)
- 3 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
- 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
MEGA 200 Watt Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
- No. of Panels: 3 x MEGA 200 Watt Solar Panels
- Wattage Per Panel: 200W
- Total Wattage of Panels: 600W
Features:
- Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Specifications & Downloads
Full Specification:
MEGA 200W Solar Panel
DownloadBRAVO 40A MPPT Charge Controller
DownloadUser Manual:
BRAVO 40A MPPT Charge Controller
Download- Maximum Power(Pmax): 200W
- Maximum Power Voltage(Vmp): 18.4V
- Maximum Power Current(Imp): 10.9A
- Open Circuit Voltage(Voc): 21.8V
- Short Circuit Current(Isc): 11.6A
- Nominal Operating Cell Temp (NOCT): 113 +/-35° F
- Temperature Range: -40 ~ +185°F
- Weight: 23.6 lbs
- Dimensions: 58.7 x 26.8 x 1.2 in
BRAVO 40 Amp MPPT Solar Charge Controller
Features:
- MPPT
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V/24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accuracy
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
Warranty:
- 2-Year Warranty
Specifications:
- System Nominal Voltage: 12/24V Auto
- Max. PV Open Circuit Voltage: 100VOC
- Charging Technology: MPPT
- Max PV Charging Current: 40A
- Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
- Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
- Housing Case Color: Black / Grey
- IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
- Net Weight: 1.17kg / 2.58lb
- Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
