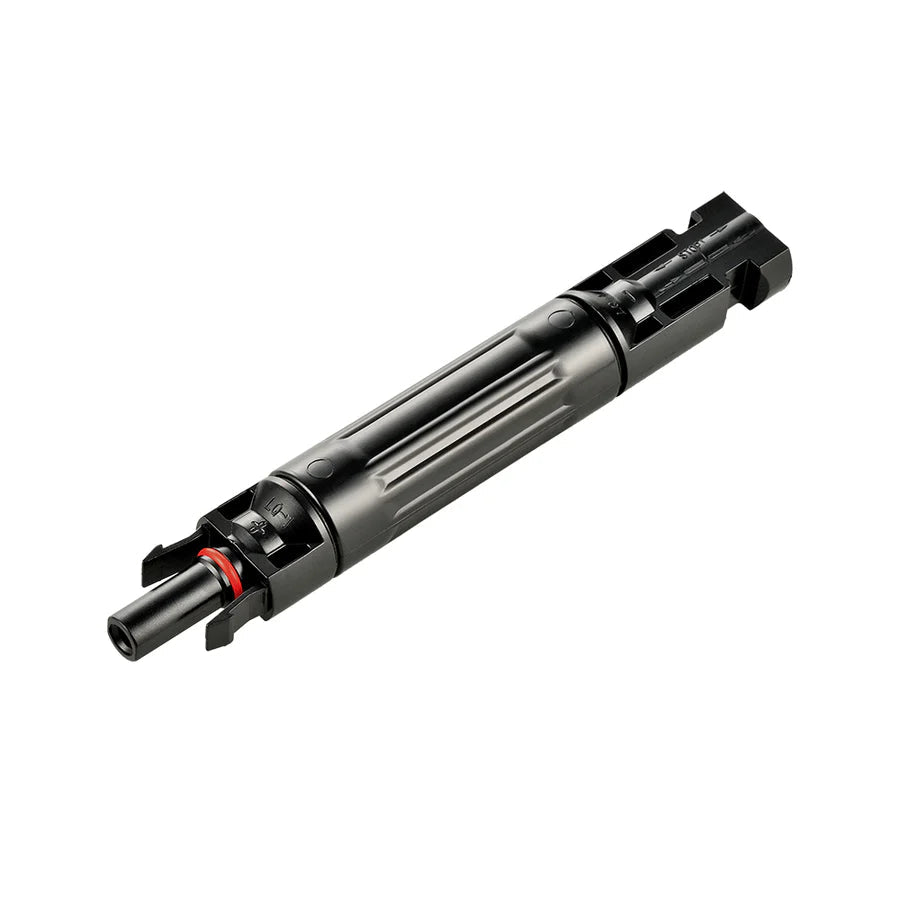

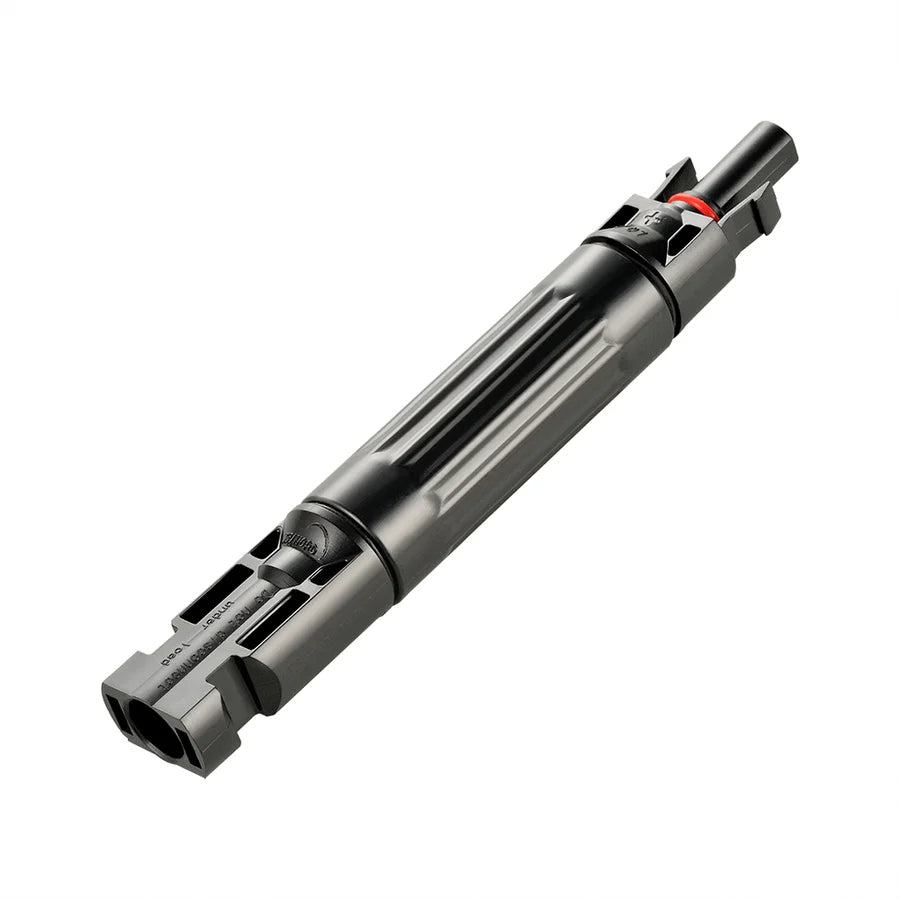

Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Features

• Fuse Can be replaced.

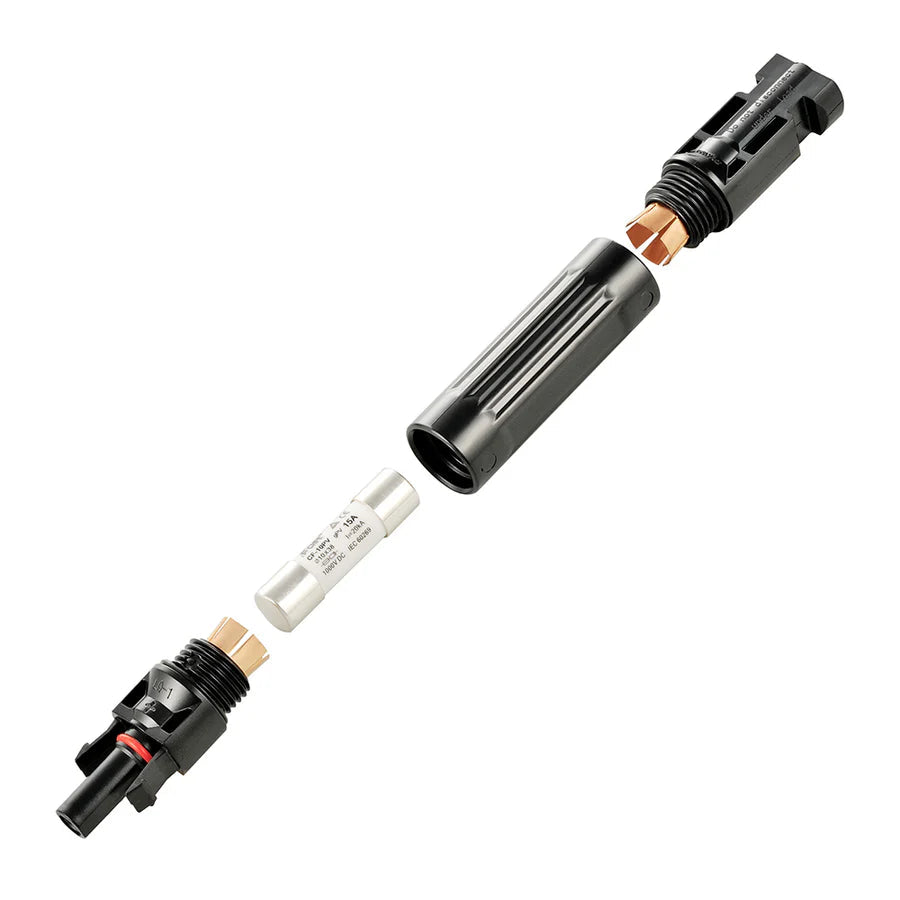

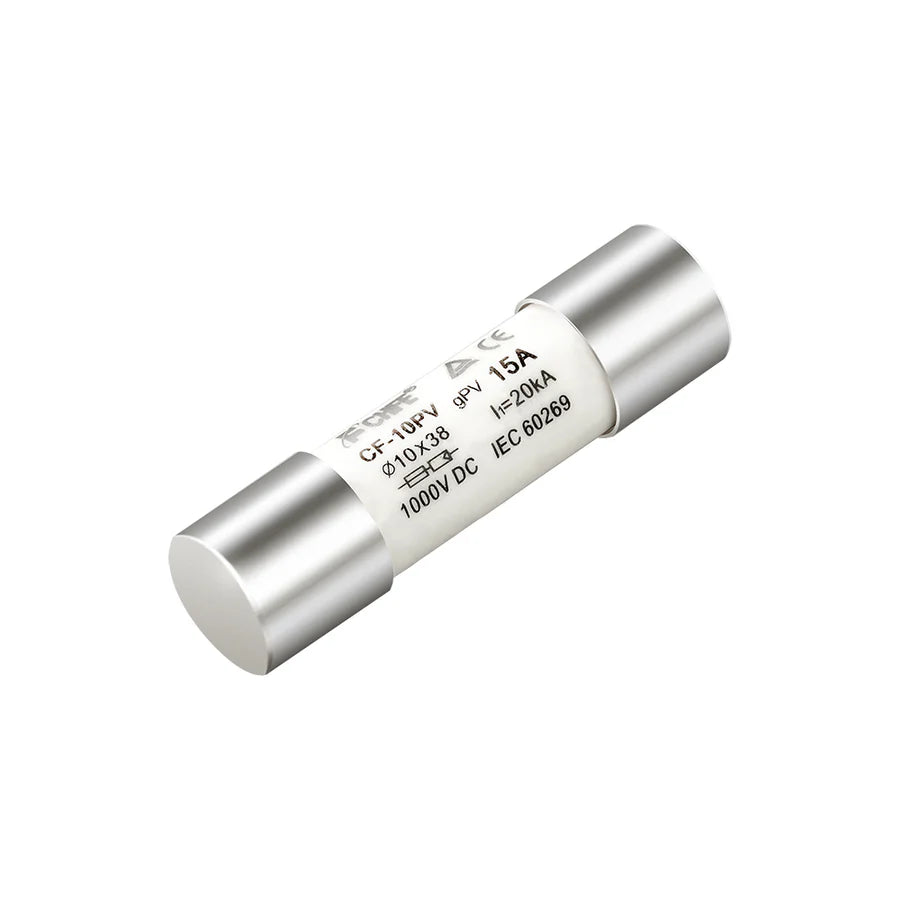

• 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
• Compatible with PV cables of different insulation diameters.
• Designed for a wide range of DC applications.
• Simple plug-and-play.
• Auto-lock equipment of male and female points renders connections easy and reliable.
• Waterproof fuse holder - IP67 Class Protection.
• Insulation material PPO.
• High current-carrying capacity.
• Prevent large currents from damaging the solar panels.
• Designed to provide complete single-circuit protection to your solar power array.
• Protection Class II.
• Connector adopts touch and insertion of reed with inner-knob type.
• Purchase this product for extra protection on your system.

Specifications

• Rated Current: 10A/15A/20A/30A
• Degree of Protection: IP2X/IP67
• Rated Voltage: 1000 V DC
• Flame Class: UL94-V0
• Test Voltage: 6000V (50Hz, 1 min)
• Safety Class: II
• Overvoltage Category: CATIII
• Suitable Connector: Solar Connector
• Contact Resistance of Plug Connector: 1mΩ
• Insertion Force / Withdrawal Force: ≤50N/≥50N
• Contact Material: Copper, Silver Plated
• Insulation Material: PPO
• Temperature Range: -40 to +257°F
