Jackery

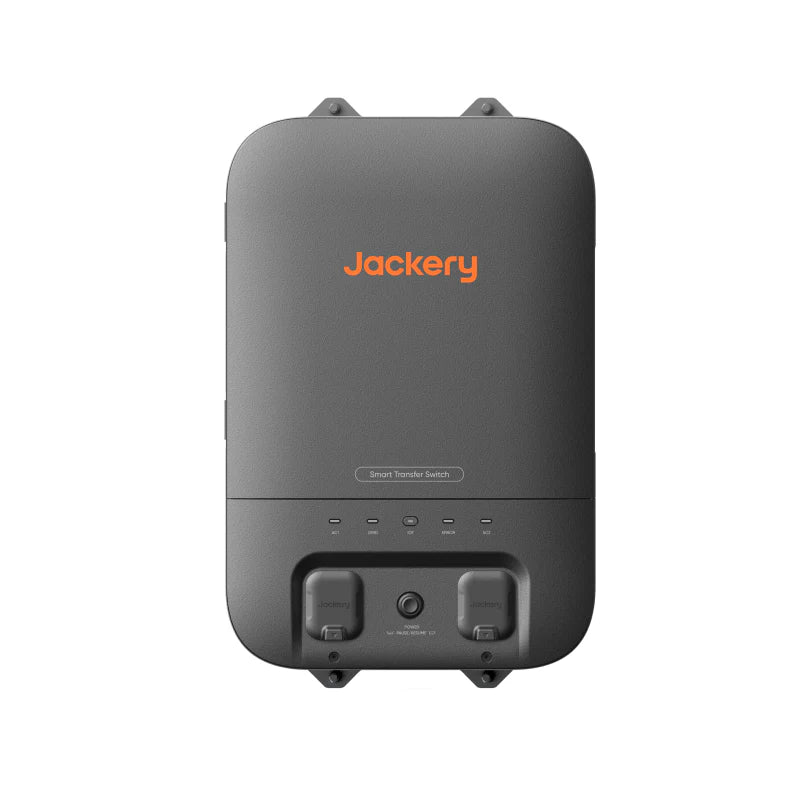

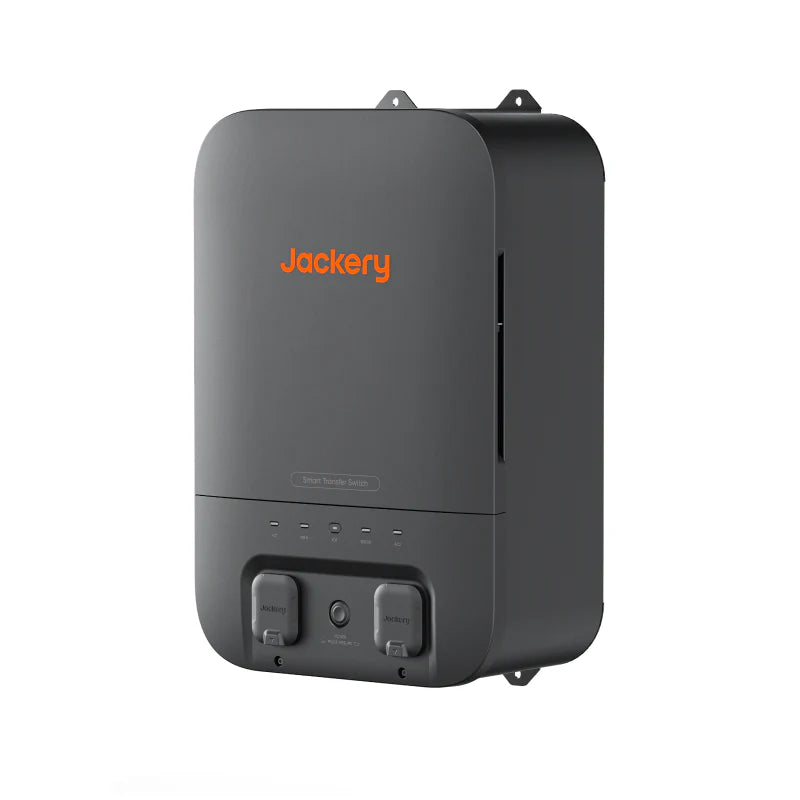

Jackery Smart Transfer Switch
Jackery Smart Transfer Switch
No reviews
Regular price
$19.90
Regular price
Sale price
$19.90
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

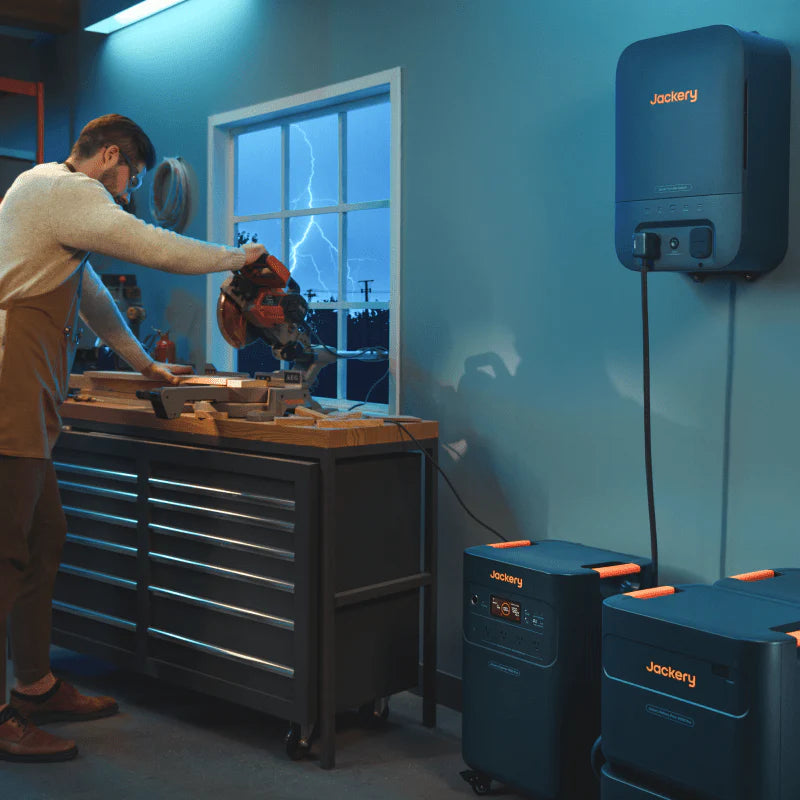

- Seamless Power Switch: Provides UPS backup within ≤20ms during power outages, ensuring uninterrupted operation.
- Eco-Friendly & Silent: Designed to integrate with solar panels and rooftop PV systems via Jackery Explorer 5000 Plus for sustainable energy use.
- Energy Savings: Charging-discharging mode helps reduce electricity costs.
- Compact & Maintenance-Free: Lightweight, easy to install, and requires no maintenance.

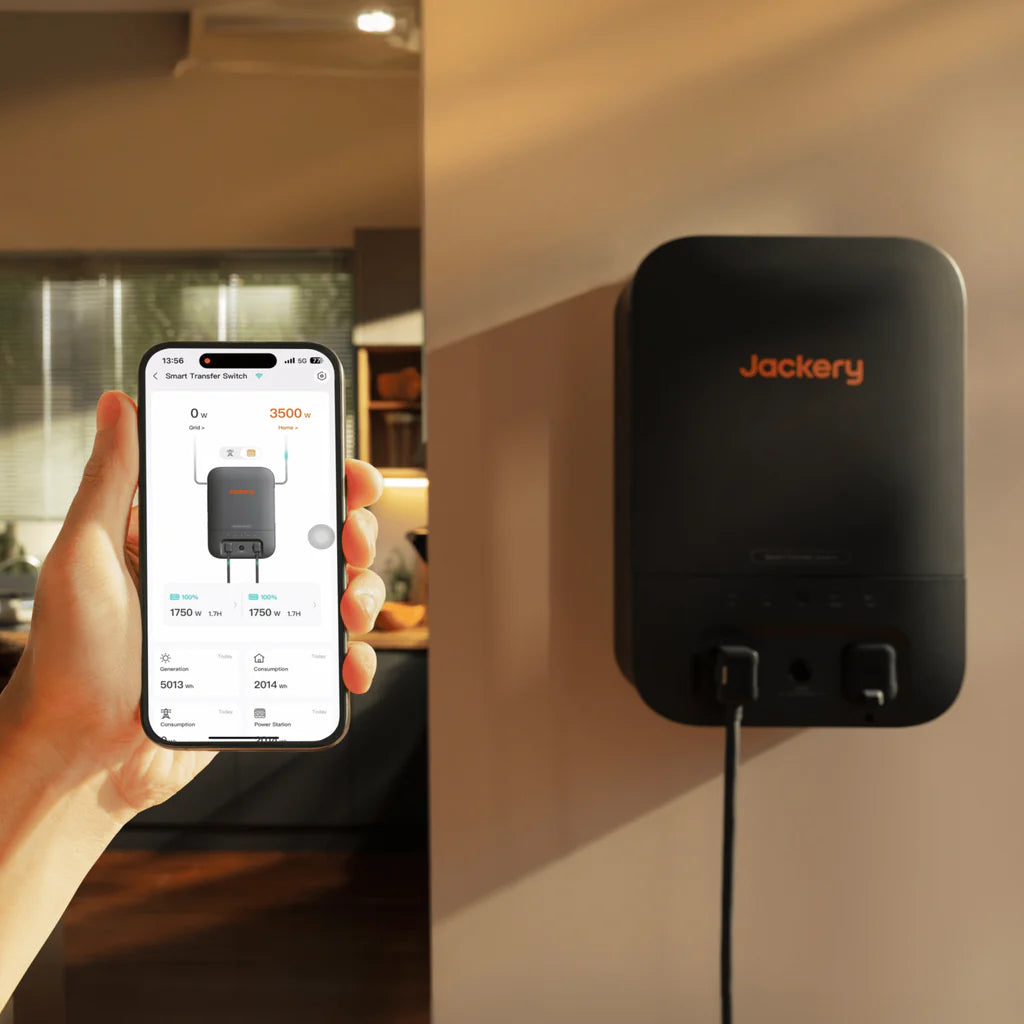

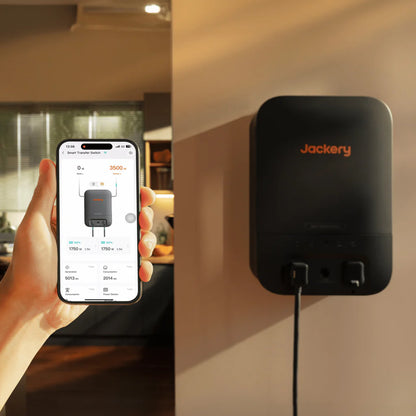

- Smart App Control: Enables real-time monitoring and energy management.
- Note: The Smart Transfer Switch is only compatible with the Jackery 5000 Plus Series.
| SPECIFICATIONS | Jackery Smart Transfer Switch |
|
Model No. |
JA-TS02A |
|
AC Voltage (Nominal) |
120V/240V~ 60Hz |
|
Feed-In Type |
Split Phase |
|
Maximum Input Current |
100A Grid / 60A Power Station |
|
Maximum Output Current |
60A Home Load / 33.4A Power Station |
|
Maximum Input Short-Circuit Current |
10KA |
|
Overvoltage Category |
IV |
|
UPS |
≤20ms |
|
Enclosure Type (Distribution Panel) |
NEMA Type 1 |
|
Number of Load Branches |
12 |
|
Main Circuit |
2 AWG |
|
Branch Circuit |
14 AWG 12 AWG 10 AWG |
|
Communication |
Wi-Fi and Bluetooth |
|
Operating Temperature |
-20°C~40°C (-4°F~104°F) |
|
Weight |
About 25.57 lbs/11.6 kg |
|
Dimensions |
22 x 14.7 x 7.87 in/56 x 37.4 x 20 cm |
Package List
- Jackery Smart Transfer Switch
- Marking-off Template
- Power Input/Output Cable
- 2*Wall Bracket
- 4*M4 Phillips Flat Head Screw
- User Manual
