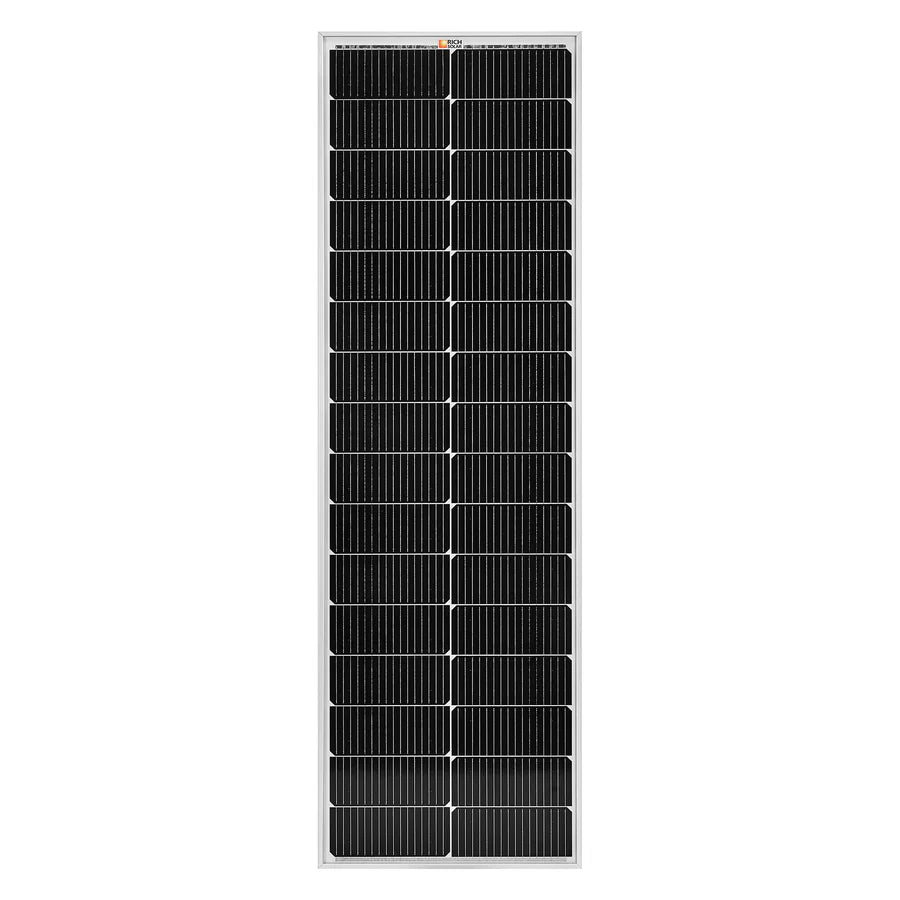

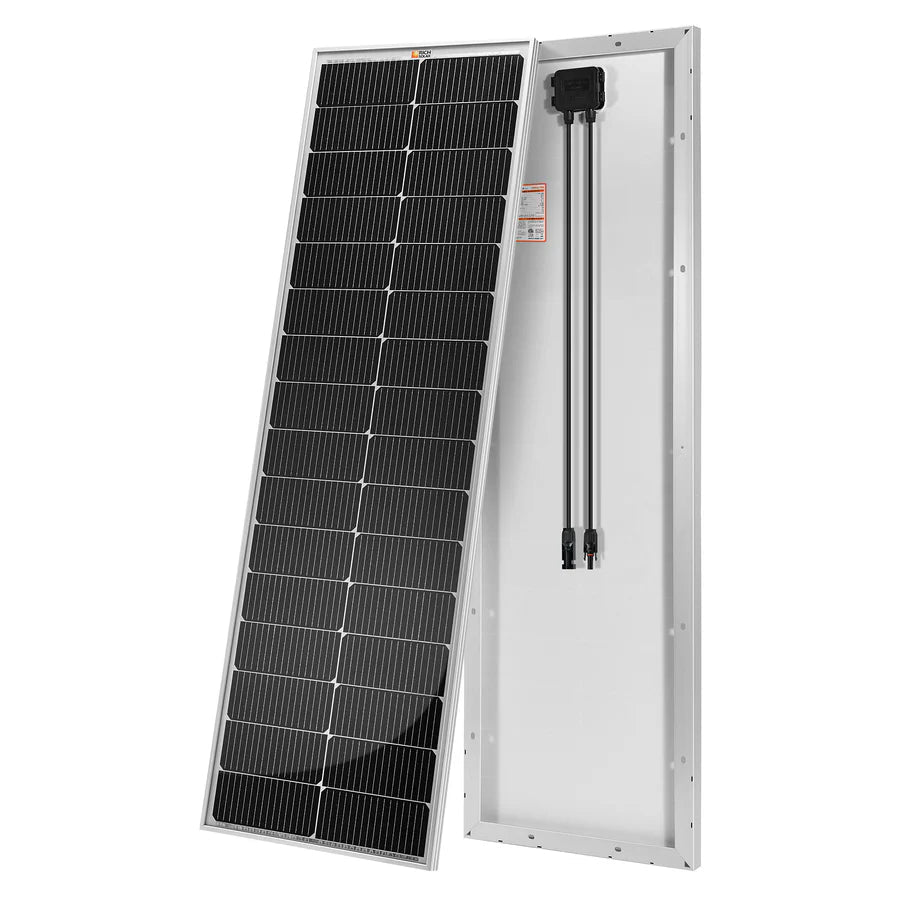

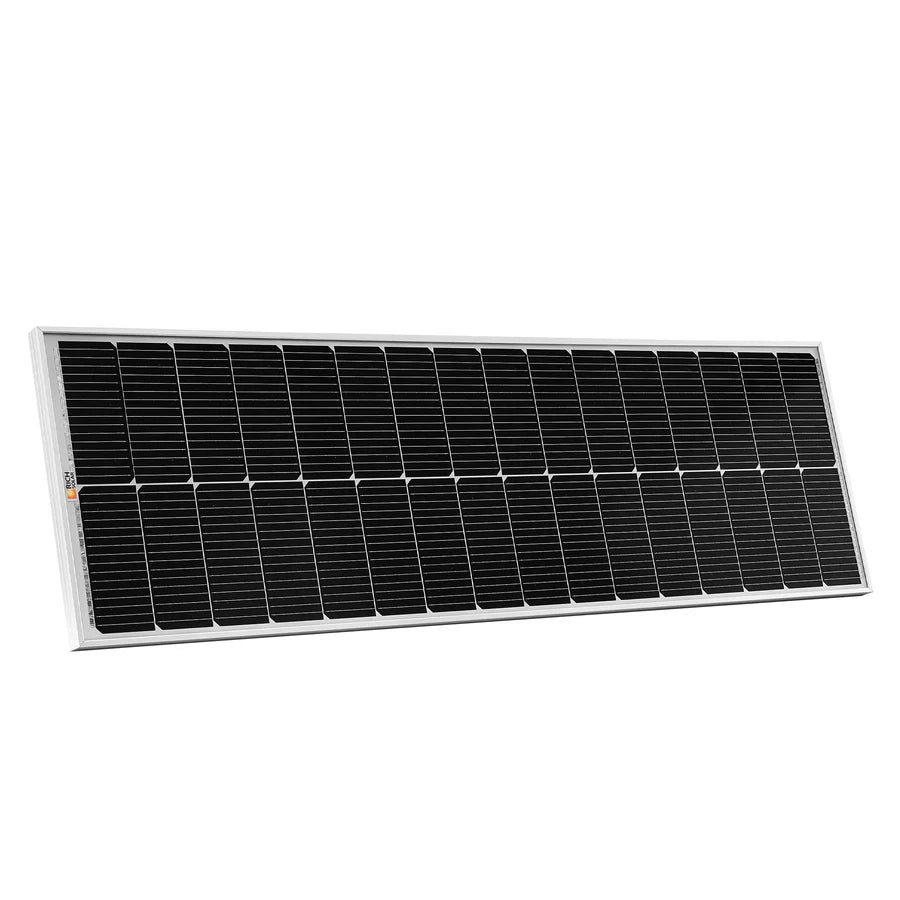

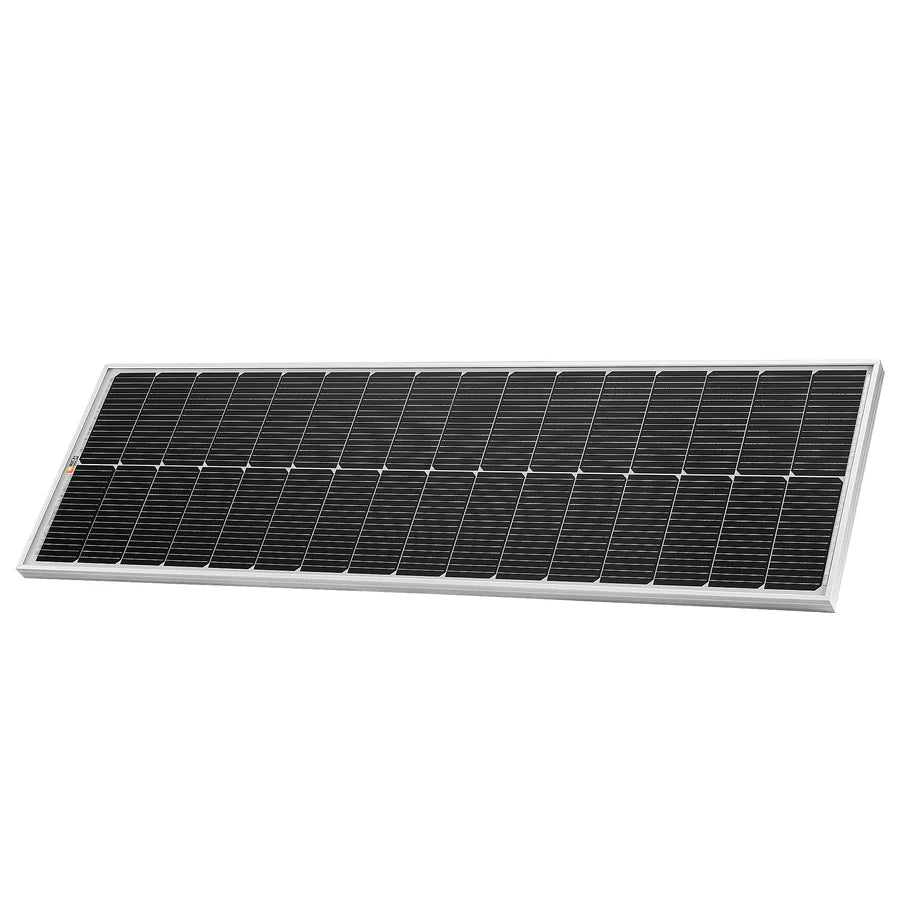

MEGA 100 SLIM | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Campers, Overlanders, Boats | 25-Year Output Warranty | UL Certified

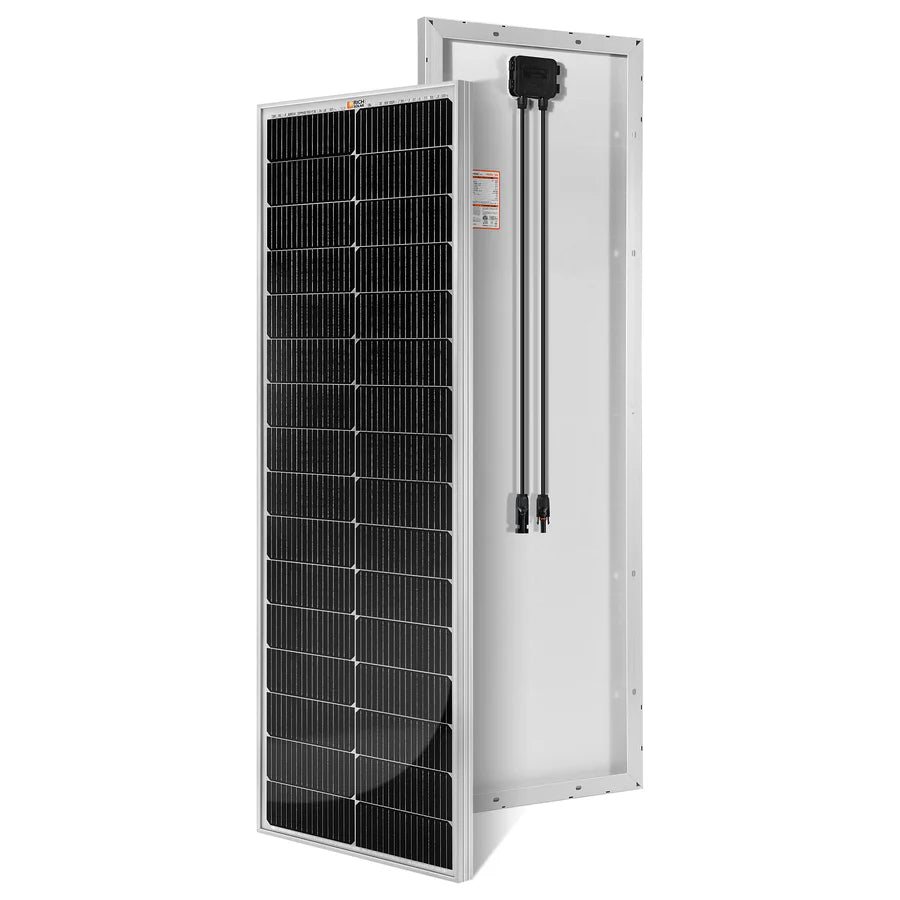

The MEGA 100 SLIM is an off-grid solar panel that is designed for the space-limited overlander. Featuring an aluminum anodized frame and tempered glass coupled with high-efficiency solar generation with 12V and 100W output, the MEGA 100 SLIM is perfect for vans, boats, and more.

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP 65 or IP 67 rated.

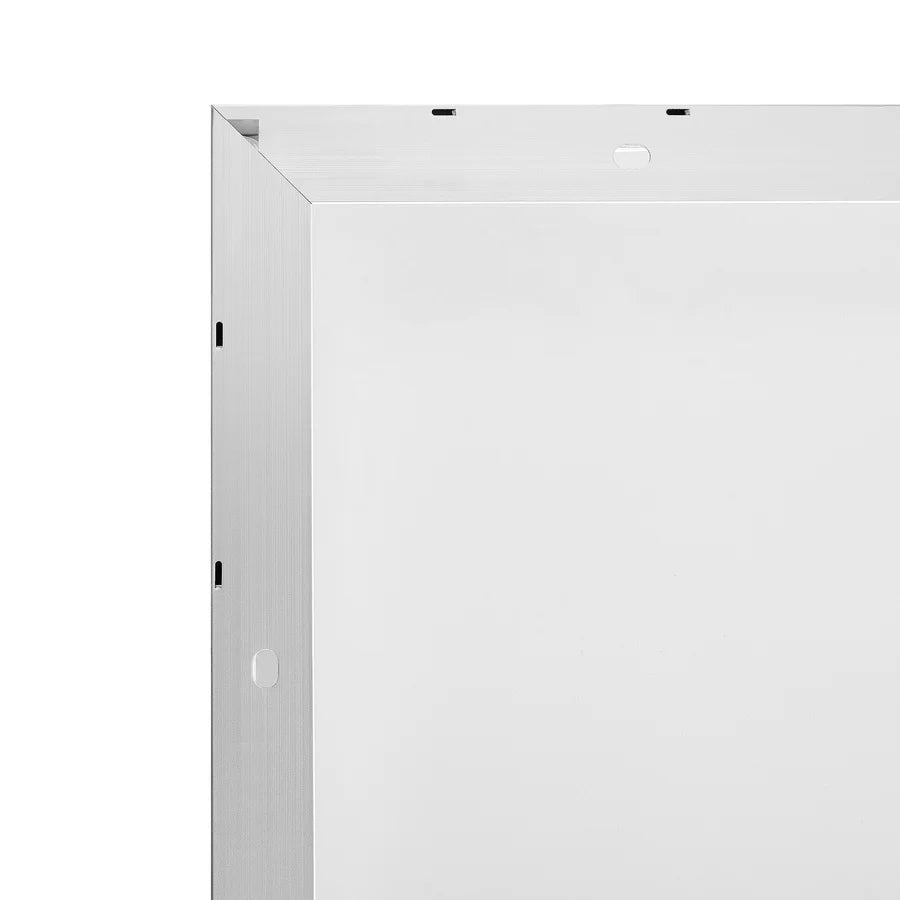

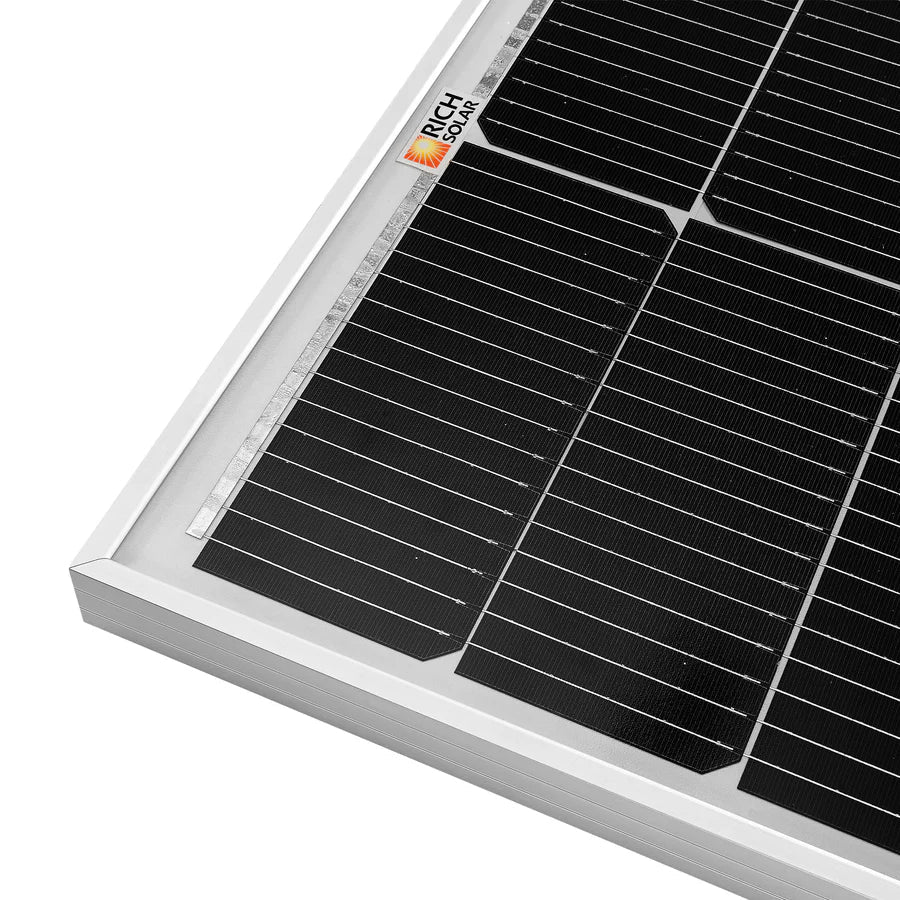

• Built with strong tempered glass and aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low-light performance on cloudy days, mornings and evenings.

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Built-in Components

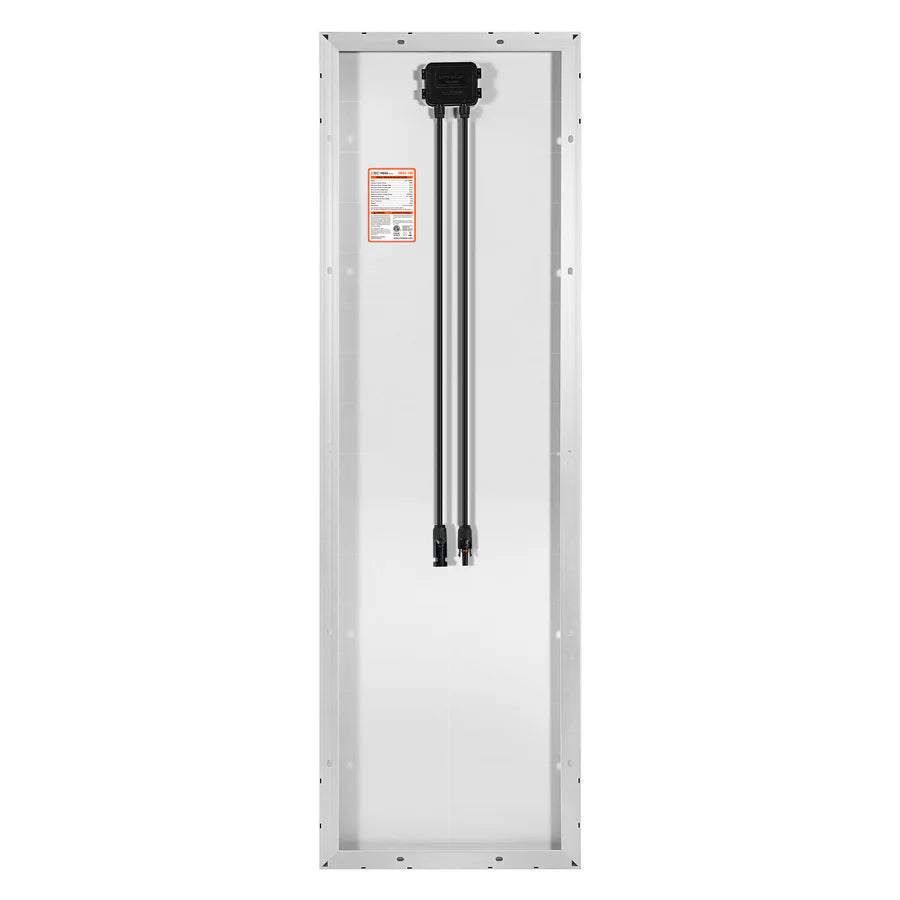

• Panel Leads (Pair): 12AWG

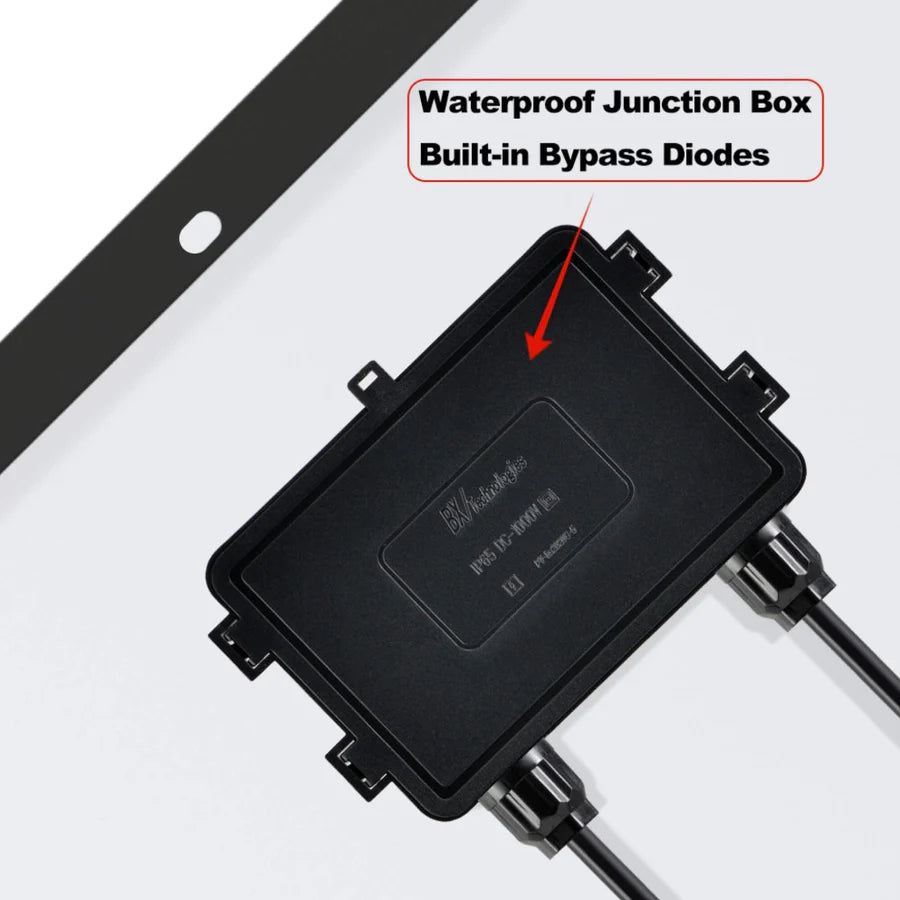

• IP65-rated waterproof junction box

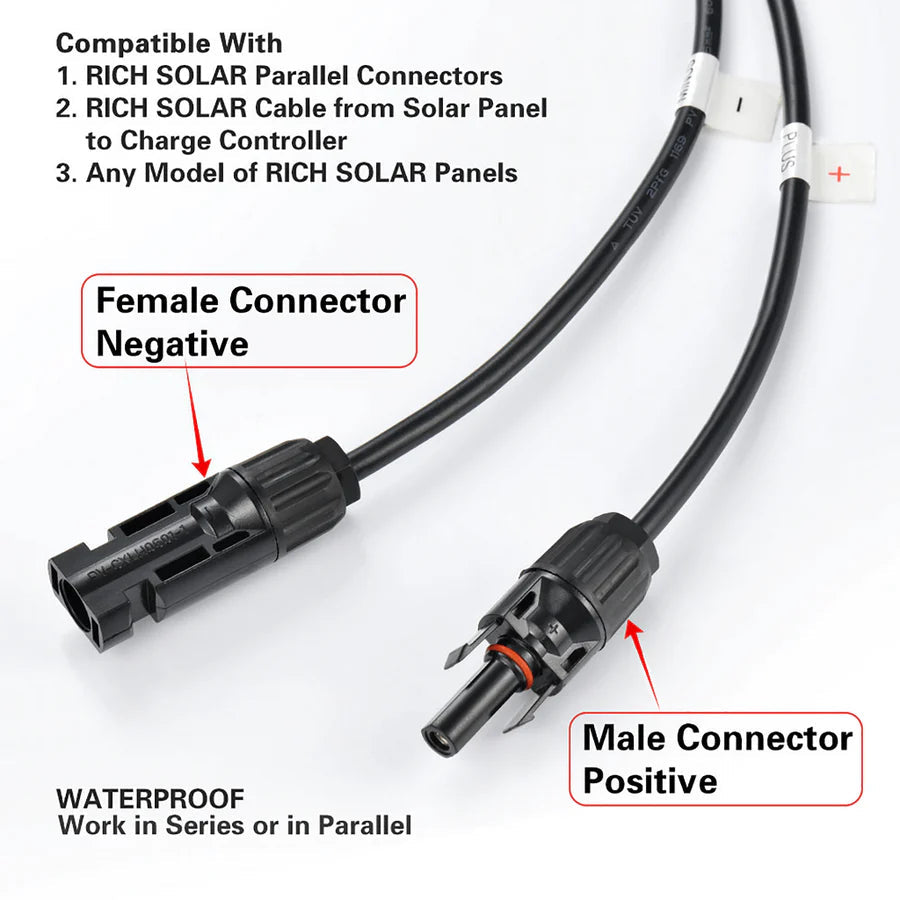

• IP67-rated waterproof solar connectors

Specifications & Downloads

Specifications

Download

UL Certification

Download

• On Panel Cable Length
  ≈ 35 in
• Material
  Tempered Glass, Aluminum, Monocrystalline Silicon

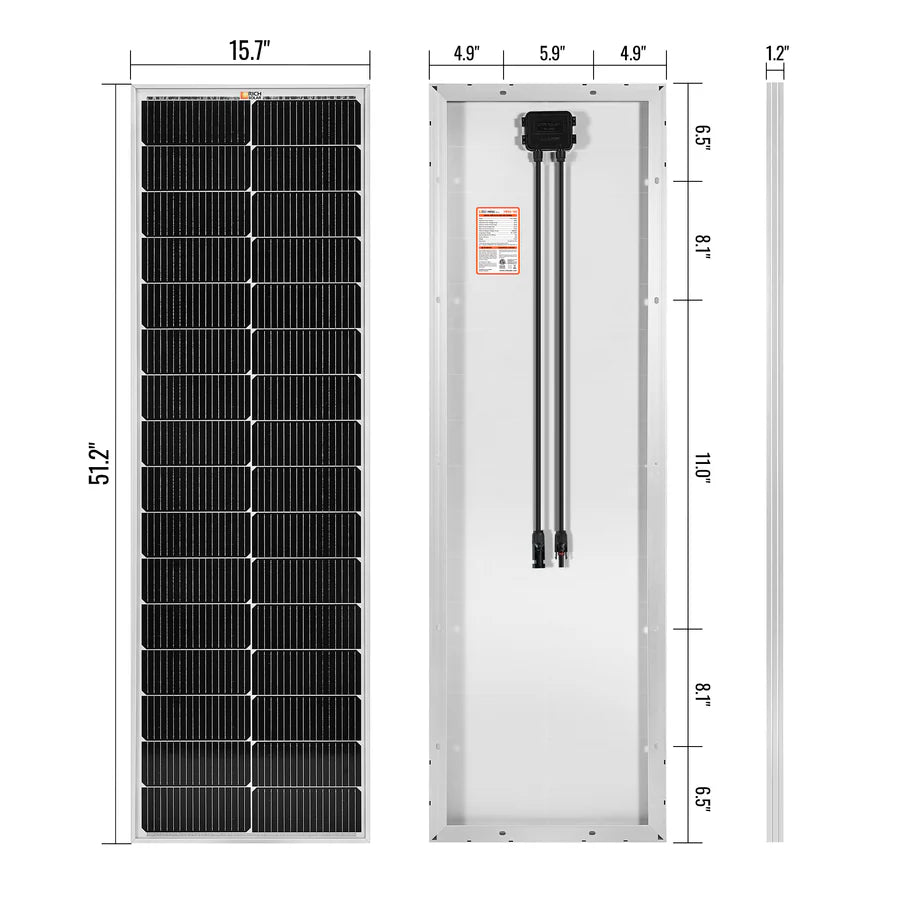

• Dimensions
  51.2 x 15.7 x 1.2 in
• Weight
  13.7lb
• Maximum Power (PMAX)
  100W
• Maximum Power Voltage (VMP)
  18.1V
• Maximum Power Current (IMP)
  5.52A
• Open Circuit Voltage (VOC)
  22.1V
• Short Circuit Current (ISC)
  5.96A
• Maximum System Voltage (VMAX)
  1000VDC

Warranty

• 25-year output warranty
• 10-year workmanship warranty
